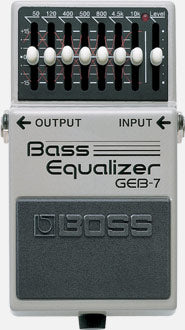

BOSS GEB-7 Bass Equalizer Pedal - 7-Band EQ for Electric Bass Guitar - Perfect for Live Performances & Studio Recording

Product Description

Buzz Music is Far North Queenslands' home of Boss

Precise Tonal ControlThe GEB-7 is a seven-band equalizer created specifically for the frequency range of the electric bass. Since the frequency range extends down to 50Hz, the GEB-7 is also great for adjusting depth and bottom end of an upright bass with pickups.

• 50Hz to 10kHz frequency range specifically designed for bass
• Full range response, even for five- and six-string basses
• Can be used as a "boost" or "cut" pedal using the level control knob
• Great for eletric-acoustic bass applications
• AC adaptor or 9V battery operation
• BOSS five-year warranty

Specifications

Nominal Input Level

-20 dBu

Input Impedance

1 M ohm

Nominal Output Level

-20 dBu

Output Impedance

1 k ohm

Recommended Load Impedance

10 k ohm or greater

Bypass

Buffered bypass

Controls

Level Control knob
Equalizer Control knob
50, 120, 400, 500, 800, 4.5 k, 10 kHz
Pedal switch

Indicator

CHECK indicator (Serves also as battery check indicator)

Connectors

INPUT jack: 1/4-inch phone type
OUTPUT jack: 1/4-inch phone type
DC IN jack

Power Supply

Carbon-zinc battery (9 V, 6F22)
Alkaline battery (9 V, 6LR61)
AC adaptor (PSA series: sold separately)

Current Draw

30 mA

Expected battery life under continuous use

Carbon: Approx. 8.5 hours
Alkaline: Approx. 18.5 hours
*These figures will vary depending on the actual conditions of use.

Accessories

Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Carbon-zinc battery (9 V, 6F22)

Options (sold separately)

AC adaptor: PSA series

Size and Weight

Width

73 mm
2-7/8 inches

Depth

129 mm
5-1/8 inches

Height

59 mm
2-3/8 inches

Weight (including battery)

400 g
15 oz

* 0 dBu = 0.775 Vrms

*The specifications are subject to change without notice.
