Product Description

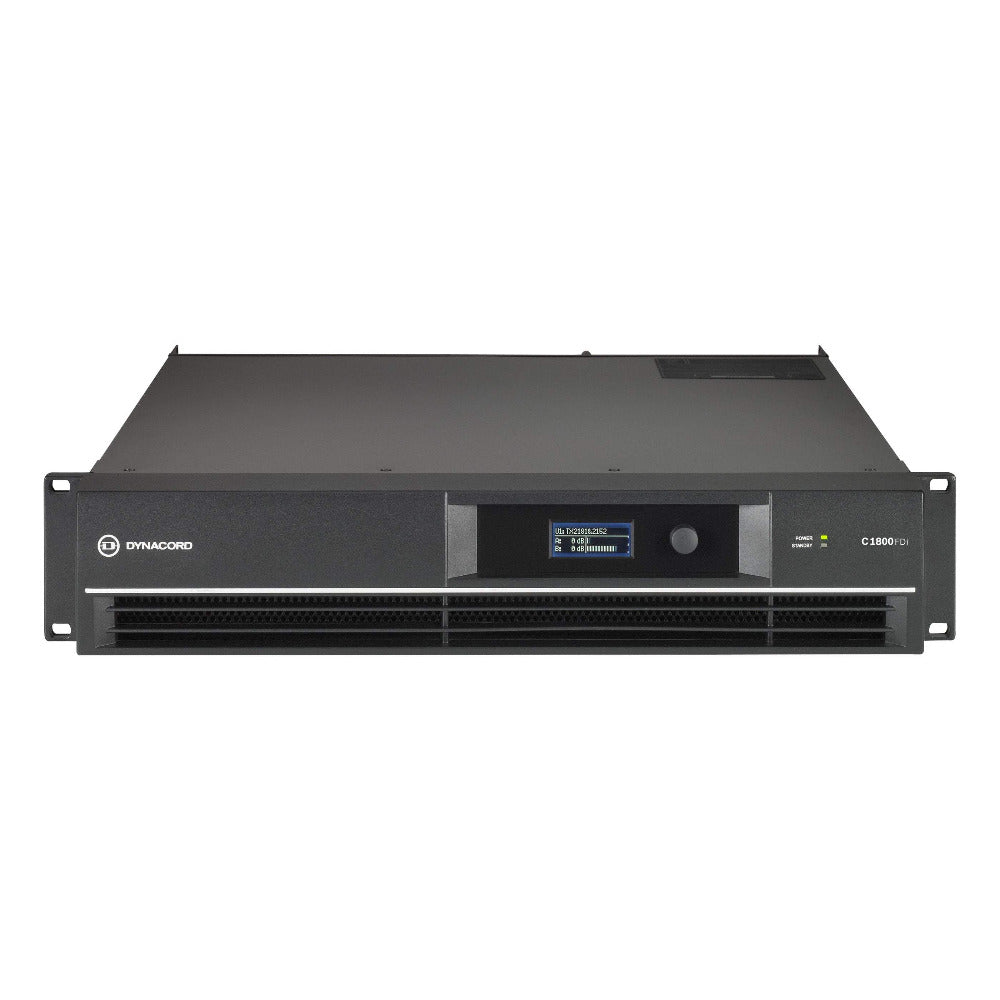

Dynacord C1800FDi DSP 2 x 950 W Power Amplifier for fixed install applications.
Product details:
- Professional Installation DSP amplifier
- Fully integrated professional speaker processing with FIR Drive technology
- Market-leading acoustic performance and rock-solid reliability
- Intuitive system control software makes setup and control easy
- Color: Black
- Dimensions (W x H x D), 17.2" x 3.4" x 18.2"
- Weight 15.2 kg (33.5 lb)
DYNACORD C Series amplifiers are dedicated installation DSP amplifiers optimized for 24/7 operation. Integrated digital signal processing provides access to professional speaker processing with FIR Drive technology. C Series amplifier utilize Class A/B resp.
Class H topologies, which provide market-leading acoustic performance and reliability. The connectivity is optimized for the needs of fixed-install applications. For low cost of ownership, a power-saving standby mode is available. A front-panel LC display allows local control and supervision of the amplifier. An intuitive system control software allows fast system setup, flexible system control, and comprehensive supervision.
For over 70 years, Dynacord has designed and engineered professional audio systems – products that offer unparalleled performance and premium quality, the perfect balance of power and precision.
Specifications:
| Maximum RMS Voltage Swing THD = 1%, 1 kHz | 65.1 V | |||
| Voltage Gain Ref.1 kHz | 32.0 dB | |||
| THD at 600 W/4 ΩMBW = 80 kHz, 1kHz | < 0.05% | |||
| IMD-SMPTE, 60 Hz, 7 kHz | < 0.1% | |||
| DIM30, 3.15 kHz, 15 kHz | < 0.05% | |||
| Maximum Input Level | +21 dBu | |||
| Crosstalk ref. 1 kHz, at 100W/4 Ω | < -80 dB | |||
| Frequency Response, ref. 1 kHz | Frequency Response, ref. 1 kHz | |||
| Frequency Response, ref. 1 kHz | 20 k Ω | |||
| Signal to Noise Ratio Amplifier, A-weighted, ref to Max. Output Power@ 8 Ω | >105 dB | |||
| Output Noise, A-weighted | < -68 dBu | |||
| Output Stage Topology | Class AB | |||
| Power Requirements | 240 V, 230 V, 120 V or 100 V; 50 Hz to 60 Hz (factory configured) | |||
| Power Consumption ⅛ Maximum Output Power @ 4 Ω | 700 W | |||
| Mains Fuse | 240 V/230 V: T12AH; 120 V/100 V: T25AH | |||
| Protection | Audio limiters, high temperature, DC, HF, Back-EMF, Peak current limiters, In rush current limiters, Turn on delay | |||
| Cooling | Front-to-rear, 3-stage-fans | |||
| Ambient Temperature Limits | +5°C to +40°C (40°F to +105°F) | |||
| Safety Class | I | |||
| Color | Black | |||
| Dimensions (W x H x D), mm | 483 x 88 x 462.4 | |||
| Weight | 15.2 kg (33.5 lb) | |||
| Remote Power ON/GPIO | Power remote via switch, delay time selectable Floating relay contacts (show protect mode) Inputs for preset selection | |||
| Signal Processing | FIR filters, audio limiters, output and array** delay, 10-band** user PEQ, 5-band array PEQ** per channel, load impedance | |||
| Remote Control | SONICUE sound system software ** | |||
| Accessories | RMK15 (rear rack mount kit) | |||
