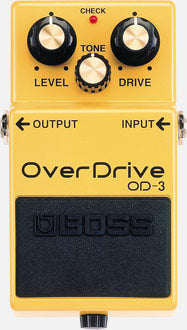

BOSS OD-3 Overdrive Guitar Effects Pedal | Compact & Durable for Blues, Rock & Metal | Perfect for Stage & Studio Use

Product Description

Buzz Music is Far North Queenslands' home of Boss

Natural Overdrive with Endless Sustain!Built in the tradition of the legendary BOSS overdrives, the OD-3 OverDrive pedal gives guitarists a greatly expanded range of smooth overdrive tones and improved response while staying true to the original.

• Dual-Stage Overdrive Circuit offers a level of sustain and compression unmatched by any overdrive pedal
• Increased dynamics yield a "bigger" sound than any previous BOSS overdrive pedal
• Dynamic, non-muffled tones reminiscent of classic overdriven "stack" amps
• Straightforward Drive, Tone and Level controls
• BOSS five-Year Warranty

Nominal Input Level

-20 dBu

Input Impedance

1 M ohm

Nominal Output Level

-20 dBu

Output Impedance

1 k ohm

Recommended Load Impedance

10 k ohms or greater

Bypass

Buffered bypass

Controls

DRIVE knob
TONE knob
LEVEL knob
Pedal switch

Indicator

CHECK indicator (Used for indication of check battery)

Connectors

INPUT jack: 1/4-inch phone type
OUTPUT jack: 1/4-inch phone type
DC IN jack

Power Supply

Carbon-zinc battery (9 V, 6F22) or Alkaline battery (9 V, 6LR61)
AC adaptor (PSA series: sold separately)

Current Draw

15 mA

Expected battery life under continuous use

Carbon: Approx. 34.5 hours
Alkaline: Approx. 56 hours
*These figures will vary depending on the actual conditions of use.

Accessories

Owner's manual
Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Carbon-zinc battery (9 V, 6F22)

Options (sold separately)

AC adaptor: PSA series

Size and Weight

Width

73 mm
2-7/8 inches

Depth

129 mm
5-1/8 inches

Height

59 mm
2-3/8 inches

Weight (including battery)

370 g
14 oz

* 0 dBu = 0.775 Vrms

*The specifications are subject to change without notice.
