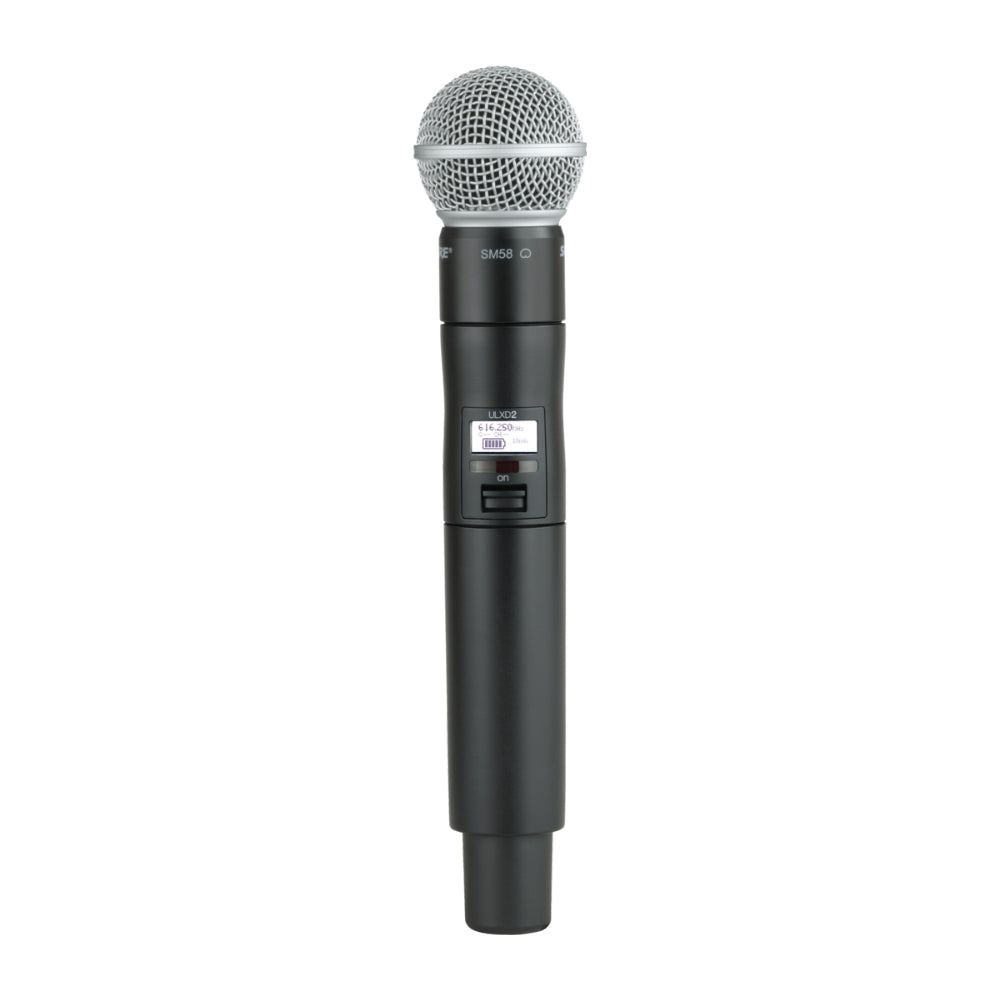

Shure ULXD2/SM58 Professional Wireless Handheld Microphone Transmitter - Ideal for Live Performances, Concerts, and Studio Recording
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:19 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:13545120
Product Description
The ULXD2 from Shure is a handheld wireless transmitter perfectly compatible with ULX-D Digital Wireless Systems.
Need more info on this product, use this to submit your request for more information.
In the Box:
(1) SHURE ULX-D Handheld Transmitter (Select Your Frequency)
Features:
- AES 256-bit encryption for applications for which secure transmission is needed
- Proprietary Shure Gain Ranging optimizes the system’s dynamic range for any input source, eliminating the need for transmitter gain adjustments
- Optional Shure SB900B lithium-ion rechargeable battery pack provides over 12 hours of battery life, precision metering in hours and minutes, and zero memory effect
- External charging contacts for docked charging (with the SBC200 Dual Docking Charger)
- Transmitter Mute Mode repurposes the On/Off switch into a mute switch, enabling audio muting while preserving RF channel presence
- Backlit LCD with easy to navigate menu and controls
- Rugged metal construction
- Frequency and power lockout
The ULXD2/B87C Handheld Wireless Microphone Transmitter works with ULX-D Wireless Systems.
Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.
Specifications:
RF Carrier Range: 174–216 MHz, 470–865 MHz, 1492–1525 MHz, 1785–1805 MHz
Note: Varies by region (See Frequency Range and Ouput Power table)
Working Range: 100 m (328 ft)
Note: Actual range depends on RF signal absorption, reflection and interference.
RF Tuning Step Size: 25 kHz, varies by region
Image Rejection: >70 dB, typical
RF Sensitivity: -98dBm at 10-5 BER
Latency: <2.9 ms
Audio Frequency Response: ULXD1: 20 Hz – 20 kHz (±1 dB) ULXD2: 30 Hz – 20 kHz (±1 dB)
Note: Dependent on microphone type
Audio Dynamic Range System Gain: @ +10 XLR Analog Output: >120 dB, A-weighted
Dante Digital Output (Dual and Quad receivers): 130 dB (typical), A-weighted
Total Harmonic Distortion: −12 dBFS input, System Gain @ +10 <0.1%
System Audio Polarity Positive pressure on microphone diaphragm produces positive voltage on pin 2 (with respect to pin 3 of XLR output) and the tip of the 6.35 mm (1/4-inch) output.
Operating Temperature Range: −18 °C (0 °F) to 50 °C (122 °F) Note: Battery characteristics may limit this range.
Storage Temperature Range: −29°C (−20°F) to 74°C (165°F) Note: Battery characteristics may limit this range
